Description

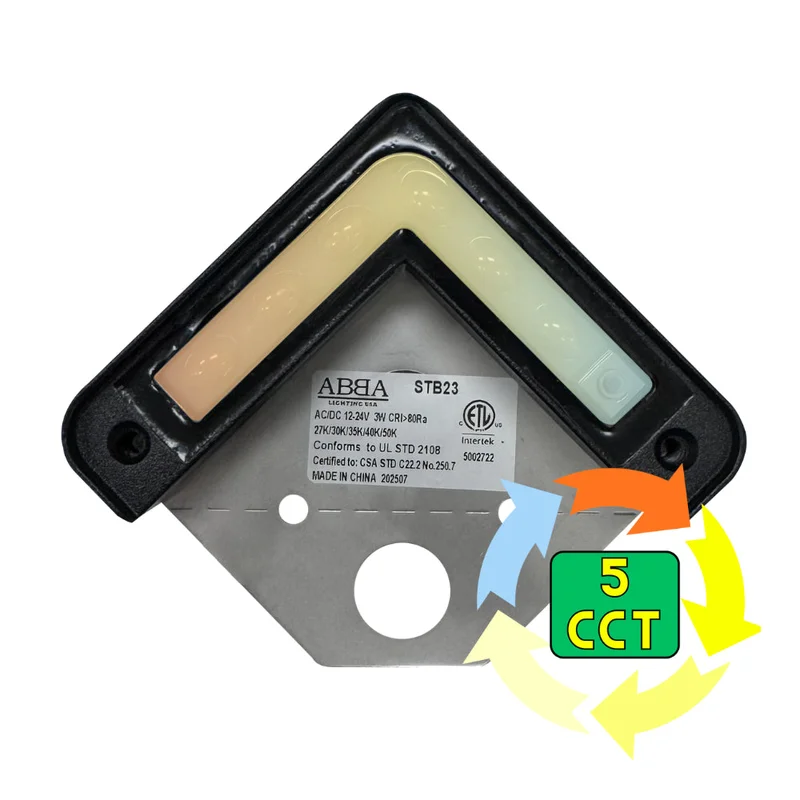

Introduce a new dimension of style and functionality to your outdoor lighting design with the STB23 L-Shape Edge Step Light— an expertly engineered linear LED fixture tailored for hardscaping professionals and modern exterior aesthetics. Featuring a striking L-shaped profile with an architectural matte black finish, this fixture is not only highly functional but also elevates the visual continuity of walls, steps, ledges, retaining structures, and masonry features.
Designed to be installed at the edge of surfaces, the STB23 provides smooth, directional illumination, enhancing spatial depth while ensuring increased visibility and safety. Its low-voltage 12V-24V input system ensures energy efficiency and safe operation in both residential and commercial settings.
Equipped with advanced 5-CCT tunable technology, the STB23 allows seamless adjustment between 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures—making it remarkably versatile for any exterior design scheme. Whether you’re aiming for a warm, ambient atmosphere or a cool modern glow, this fixture adapts with precision at the flick of a switch.
With a weather-resistant, IP65-rated design, the STB23 L-Shape Edge Light is built for enduring performance even in harsh outdoor environments. Its edge-mounted linear design is perfect for lighting architectural steps, landscape borders, and deck features—delivering consistent, glare-free illumination that enhances safety and design appeal.
🔍 Product Highlights
🛠️ Sleek L-Shape Edge Design
The slim-profile L-shaped body seamlessly fits along edges and overhangs, creating a concealed lighting effect that blends naturally into the landscape architecture.
🌈 5-CCT Adjustable Technology (2700K–5000K)
Select from five distinct color temperatures in one fixture—ranging from warm white to cool daylight. Ideal for projects requiring visual adaptability or dynamic lighting moods.
⚡ 12V-24V AC/DC Low Voltage Operation
Engineered for efficiency and safe outdoor installation. Compatible with standard 12V-24V LED drivers, this system is perfect for large-scale or multi-fixture installations.
🎨 Architectural Matte Black Finish
Sleek, non-reflective, and durable, the matte black powder coating complements modern hardscape materials such as stone, pavers, or concrete.
💧 IP65 Weatherproof Protection
Sealed against dust, rain, and outdoor moisture. Perfectly suited for wet location installations such as steps, garden walls, or perimeter hardscape details.
🧱 Perfect for Modern Landscape Integration
The STB23 is engineered to enhance night visibility on stairs, walls, and ledges without obtrusive glare—ideal for both aesthetic and functional lighting needs.
📐 Technical Specifications
| 🧾 Specification | Details |
|---|---|
| Fixture Model | STB23 L-Shape Edge Light |
| Input Voltage | 12V-24V Low Voltage (AC/DC) |
| Wattage | 3 Watts |
| Lumen Output | 180 Lumens |
| Light Source | Integrated LED |
| Color Temperature Options | 5CCT: 2700K / 3000K / 3500K / 4000K / 5000K |
| CCT Selection Mechanism | Onboard Switch (Selectable) |
| Material | Aluminum with Powder-Coated Finish |
| Finish Color | Matte Black |
| Beam Direction | Forward / Downward (Edge Mounted) |
| Ingress Protection Rating | IP65 – Suitable for Wet Locations |
| Mounting Style | Edge Mount – Step, Wall, or Ledge Installation |
| Operating Temperature Range | -4°F to 122°F (-20°C to 50°C) |
| Certifications | ETL Listed |
| Warranty | 5-Year Limited Warranty |
🏗️ Ideal Applications
-
Hardscape Step Lighting – Mount along vertical risers or horizontal treads for safe navigation.
-
Retaining Walls & Ledges – Cast light down building stone or brick surfaces for a clean, elegant glow.
-
Outdoor Kitchens & Benches – Integrate into bar tops, counters, and ledges for mood-enhancing perimeter light.
-
Modern Garden Walls & Borders – Accentuate linear forms and architectural lines in landscaping.
-
Commercial Plaza Seating & Walkways – Elevate pedestrian areas with evenly distributed edge lighting.
All low voltage outdoor lights must be installed with a 12V Low Voltage Transformer and connections between lights must be secured using Grease Filled Wire Nuts (WN12) waterproof connectors.
